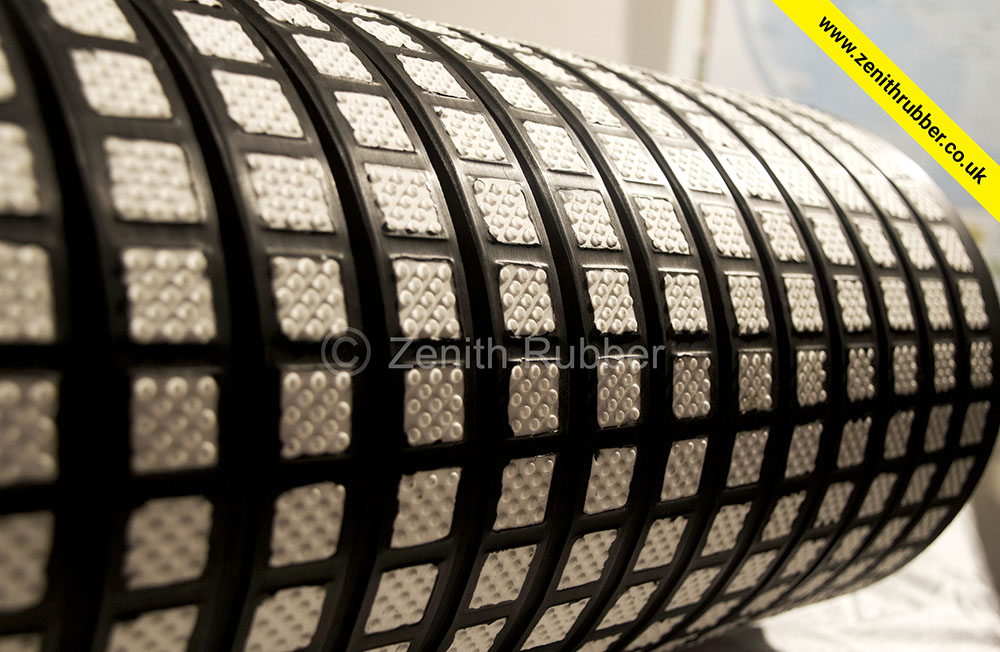

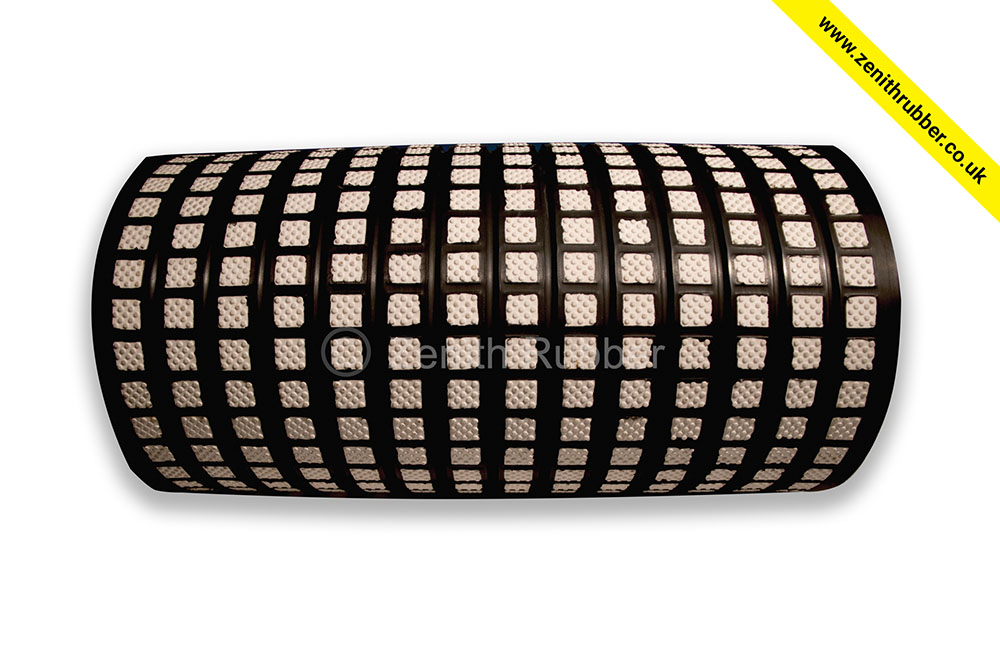

Our ceramic pulley lagging rubber sheeting is used as a protective surface to improve and extend conveyor pulley life in wet areas, muddy areas and extreme conditions.
Made with high quality alumina tiles, high quality abrasion-resistant rubber and backed with a neoprene bonding layer, our ceramic lagging is available in thicknesses of 12mm, 13mm, 15mm, 17mm and 20mm. It is supplied in a width of 500mm and in rolls of 5m or 10m, which can be cut to size on request.
(Swipe tables to scroll)
Technical Specification |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Colour | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Abras. | TDS | ||||
| Gm/cm3 | SHORE A | Kg/cm2(min) | % (min) | mm3 | |||||||
| Zen-Star CL | Black | 1.12 | 70 ± 5 | 170 | 450 | 100-120 |  |
||||
| Zen-Star CL FRAS | Black | 1.40 | 70 ± 5 | 180 | 500 | 160-170 | |
||||
| Zen-Star Green CL | Black | 1.12 | 70 ± 5 | 170 | 450 | 100-120 | |
||||
Technical Specification |
||||||
| Code | Thickness (mm) | Width (mm) | Length (m) | |||
| ZenaCL 5-12 | 12 | 500 | 5/10 | |||
| ZenaCL 5-13 | 13 | 500 | 5/10 | |||
| ZenaCL 5-15 | 15 | 500 | 5/10 | |||
| ZenaCL 5-17 | 17 | 500 | 5/10 | |||
| ZenaCL 5-20 | 20 | 500 | 5/10 | |||
Ceramic Specifications |
|
| Aluminum oxide Al2O3 | 92 % (min) |
| Density (g/cc) | 3.65 (min) |
| Hardness (R45N) | 77 (min) |
| Flexural strength (Mpa) | 240 (min) |
| Abrasion by rubbing (g) | 0.1 (max) |
| Co-efficient of Friction | Rubber Lagging | Ceramic Lagging |
| Dry | 0.4 | 0.7 |
| Wet | 0.3 | 0.5 |
