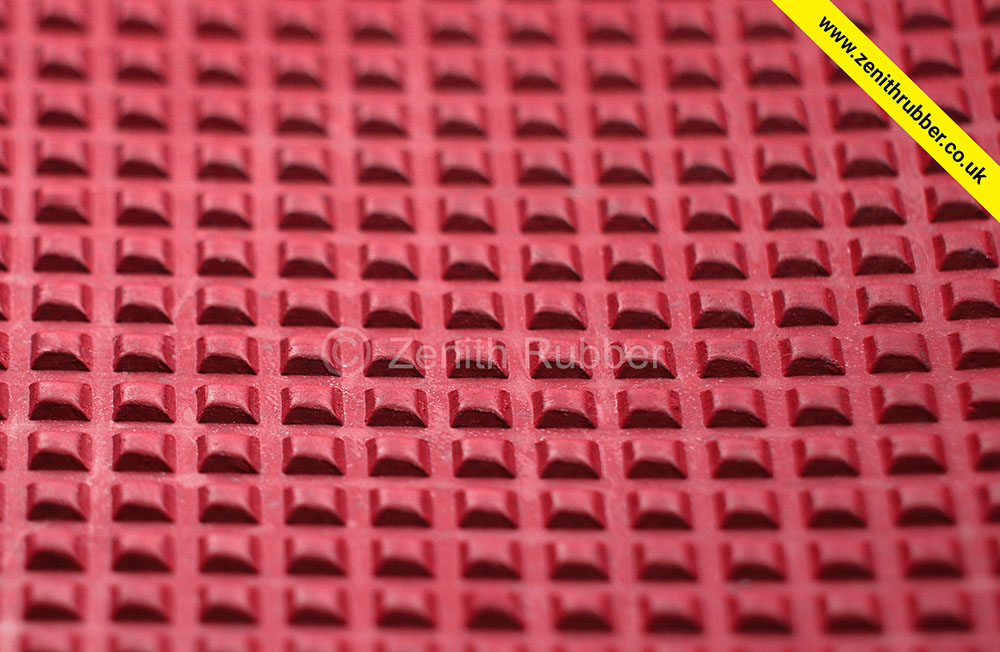

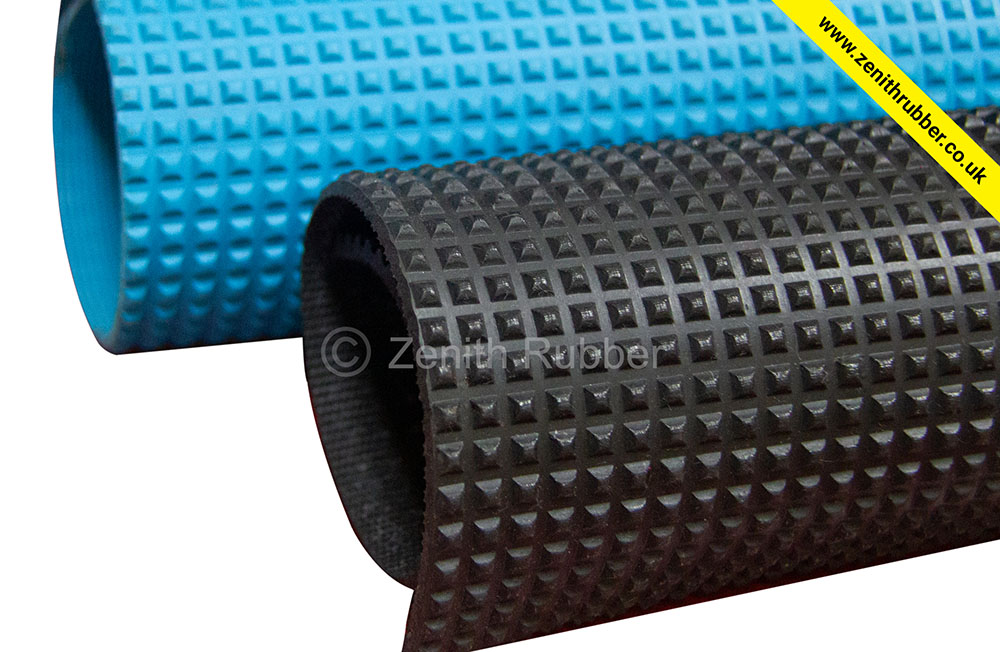

Zenith Rubber offers Square Design Mat which has a Non-Skid surface one side and a fine cloth impression pattern on the other side. Square design mat has a high relief design surface and offers excellent anti-slip characteristics from any direction of approach. The square design mat can be stuck directly over exiting hard flooring in most cases and also ideally suited for loose lay application for walkways, runners and general purpose industrial and commercial flooring areas. These mats are easily cleaned by reverse rolling or wiping.
Standard Dimension
(Swipe tables to scroll)
Square Stud Mat |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Code | Colour | Thickness | Specific Gravity | Hardness (±5) | Tensile Strength | Elongation | Application | Polymer | TDS |
| MM | Gm/cm3 | SHORE A | Kg/cm2(min) | % | |||||
| SDGP 65150 | Black, Green, red, yellow, blue | 3 | 1.5 | 65+/-5 | 35 | 250 | General Purpose | NR/SBR |  |
| SDOR 70140 | Black | 3 | 1.4 | 70+/-5 | 50 | 300 | Oil Resistant | NITRILE | |
| SDHT 60125 | Black | 5 | 1.25 | 60+/-5 | 125 | 350 | High Traffic areas | NR/SBR | |
| SDOU 65130 | Black | 3 | 1.3 | 65+/-5 | 80 | 250 | Outdoor use | EPDM | |
| SDEI-N 70155 | Black, Grey | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Electrical Insulation | NR/SBR | |
| SDEI-E 75150 | Black, Grey | 3.5 | 1.5 | 75 +/-5 | 60 | 250 | Electrical Insulation | EPDM | |
| SDFR 70155 | Black | 3/4/5 | 1.55 | 70+/-5 | 50 | 250 | Fire Resistant | NEOPRENE | |
| COLORS | |||||||||
 |
|||||||||
